Product Summary
The NKA sub-miniature NKA0515SC industrial temperature range DC/DC converter is the standard building block for on-board distributed power systems. The NKA0515SC offers smaller package size, improved effi ciency, lower output ripple and 3kVDC isolation capability through the use of state of the art packaging and technology. Ideally suited for providing dual rail supplies on primarily digital boards with the added benefit of galvanic isolation to reduce switching noise. All of the rated power may be drawn from a single pin provided the total load does not exceed 1 watt.
Parametrics
NKA0515SC absolute maximum ratings: (1)Lead temperature 1.5mm from case for 10 seconds: 300℃; (2)Internal power dissipation: 550mW; (3)Input voltage VIN, NKA03 types: 5.5V; (4)Input voltage VIN, NKA05 types: 7V; (5)Input voltage VIN, NKA12 types: 15V.
Features
NKA0515SC features: (1)RoHS compliant; (2)Effi ciency up to 82%; (3)Wide temperature performance at full 1 Watt load, –40℃ to 85℃; (4)UL 94V-0 package material; (5)Reduced footprint at 0.98cm2; (6)Industry standard pinout; (7)Power sharing on output; (8)3.3V, 5V & 12V Input; (9)3.3V, 5V, 9V, 12V and 15V output; (10)Internal SMD construction; (11)Fully encapsulated with toroidal magnetics; (12)No external components required; (13)MTTF up to 1.6 Million hours; (14)No electrolytic or tantalum capacitors.

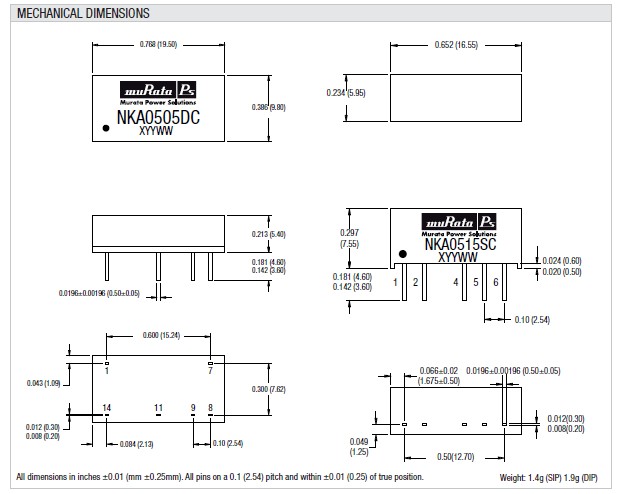

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NKA0515SC |
Murata Power Solutions |
DC/DC Converters 1W DUAL OUT 5-15V Dual Output |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
NKA0303D |
Murata Power Solutions |
DC/DC Converters 1W 3.3V to +/-3.3V |
Data Sheet |
Negotiable |
|
||||||||||||
|
NKA0303DC |
Murata Power Solutions |
DC/DC Converters 1W 3.3V to +/-3.3V Dual Output |
Data Sheet |
|
|
||||||||||||
|
NKA0303S |
Murata Power Solutions |
DC/DC Converters 1W 3.3V to +/-3.3V |
Data Sheet |
Negotiable |
|
||||||||||||
|
NKA0303SC |
Murata Power Solutions |
DC/DC Converters 1W 3.3V to +/-3.3V Dual Output |
Data Sheet |
|
|
||||||||||||
|
NKA0305D |
Murata Power Solutions |
DC/DC Converters 1W 3.3V to +/-5V .1A |
Data Sheet |
Negotiable |
|
||||||||||||
|
NKA0305DC |
Murata Power Solutions |
DC/DC Converters 1W 3.3V to +/-5V .1A Dual Output |
Data Sheet |
|
|
||||||||||||
