Product Summary

The SKY65201 is an integrated RF front-end module for 802.11b/g WLAN applications. The SKY65201 is screened at operating frequency prior to shipment for guaranteed performance. It is targeted for high-volume WLAN applications.

Parametrics

SKY65201 specifications: (1)Frequency band: 2.4 to 2.5 GHz; (2)Linear power out(1): 802.11b compliant 20 21 dBm, 802.11g compliant 15.5 16.5 dBm; (3)Output IP3: 38 dBm; (4)P1 dB: 23 dBm; (5)Gain: 27 min, 30 typ, 31 max dB ; (6)Input return loss: 10 min, 13 typ dB; (7)Output return loss: 8 min, 10 typ dB.

Features

SKY65201 features: (1)Single integrated RF module; (2)HBT PA, BP and LP filter, diversity switch; (3)High linearity to antenna: Meets 802.11b mask to +21 dBm, Meets 802.11g requirements to +16 dBm; (4)Low current — 190 mA @ 20 dBm (11b),130 mA @ 16 dBm (11g); (5)High gain 30 dB; (6)3.3 V operation; (7)Balanced RF TX,RX input/output; (8)Low cost laminate-based plastic package; (9)Available on tape & reel.

Diagrams

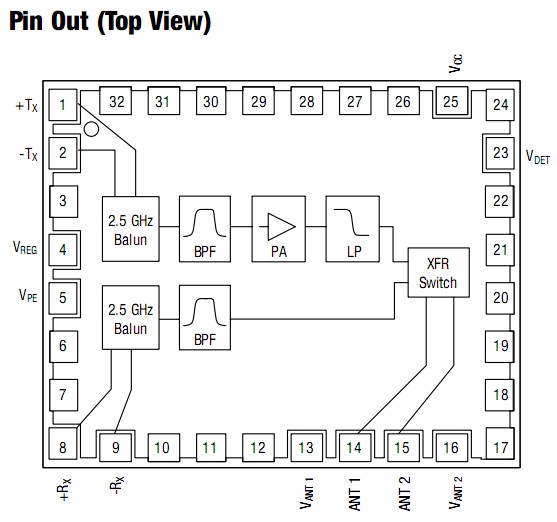

SKY65201 pin out
