Product Summary

The HHM1520 is a XFRMR BALUN RF.

Parametrics

HHM1520 general specifications: (1)start freq.:2400MHz; (2)stop freq.:2500MHz; (3)Ins.loss:1.0dB; (4)Bal.imped.:100ohm; (5)amp.bal.:180°±10; (6)size:2.0*1.2*0.95mm.

Features

HHM1520 features: (1)Category:RF/IF and RFID; (2)Mounting Type:Surface Mount; (3)Package / Case:0805 (2012 Metric); (4)Frequency Range:2.4 to 2.5GHz; (5)Impedance - Unbalanced/Balanced:50 / 100 Ohm; (6)Insertion Loss (Max):1.0dB; (7)Return Loss (Min):10dB; (8)Phase Difference:180°±10; (9)Packaging:Cut Tape (CT); (10)Lead Free Status:Lead Free; (11)RoHS Status:RoHS Compliant.

Diagrams

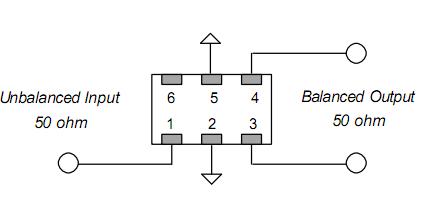

HHM1520 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HHM1520
HHM1520
TDK
Signal Conditioning XFMR Balun RF 2.4GHz WLAN & Bluetooth
Data Sheet
0-1: $1.23
1-10: $0.71
10-100: $0.61
100-500: $0.59
