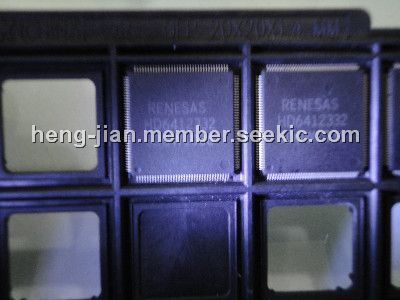

HD6412332VFC25V

QFP144, Sixteen 16-bit general registers, Sixty-five basic instructions, Eight addressing modes

Rated 5 Rating 5 | reviews | Write a review

Price:: US $30.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $30.00~50.00

PartNumber:: HD6412332VFC25V

Brand:: Renesas Technology Corp - Renesas | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Daisy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-16

From Other Seller

Part Number:HD6412332VFC25V
US $30.00 - 50.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

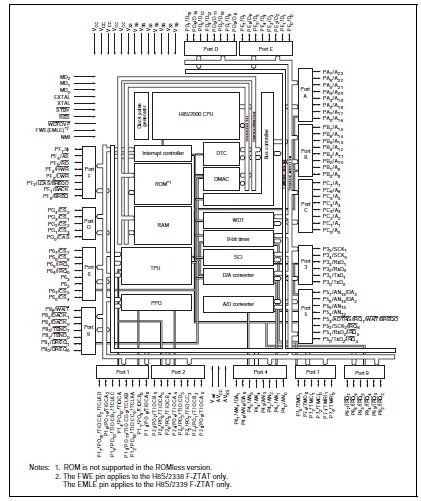

The HD6412332VFC25V is a microcomputer (MCU: microcomputer units), built around the H8S/2000 CPU, employing Renesas proprietary architecture, and equipped with peripheral functions on-chip. The HD6412332VFC25V CPU has an internal 32-bit architecture, is provided with sixteen 16-bit general registers and a concise, optimized instruction set designed for high-speed operation, and can address a 16-Mbyte linear address space. The instruction set is upward-compatible with H8/300 and H8/300H CPU instructions at the object-code level, facilitating migration from the H8/300, H8/300L, or H8/300H Series.

Parametrics

HD6412332VFC25V absolute maximum ratings: (1)Power supply voltage VCC: –0.3 to +4.6 V; (2)Input voltage, Vin: –0.3 to VCC +0.3 V; (3)Input voltage (port 4, P54 to P57) Vin: –0.3 to AVCC +0.3 V; (4)Reference power supply voltage Vref: –0.3 to AVCC +0.3 V; (5)Analog power supply voltage AVCC: –0.3 to +4.6 V; (6)Analog input voltage VAN: –0.3 to AVCC +0.3 V; (7)Operating temperature Topr Regular specifications: –20 to +75 ℃; (8)Wide-range specifications: –40 to +85 ℃; (9)Storage temperature Tstg: –55 to +125 ℃.

Features

HD6412332VFC25V features: (1)Upward-compatible with H8/300 and H8/300H CPUs; (2)General-register architecture, Sixteen 16-bit general registers (also usable as sixteen 8-bit registers or eight 32-bit; (3)registers; (4)Sixty-five basic instructions; (5)Eight addressing modes; (6)16-Mbyte address space; (7)High-speed operation; (8)CPU operating mode; (9)Power-down state.
