Product Summary

The UWT0J152MNL1GS is an aluminum electrolytic capacitor.

Parametrics

UWT0J152MNL1GS specifications: (1)Manufacturer: Nichicon; (2)Product Category: Aluminum Electrolytic Capacitors - SMD; (3)RoHS: Details; (4)Capacitance: 1500 uF ; (5)Tolerance: 20 %; (6)Voltage Rating: 6.3 Volts; (7)Operating Temperature Range: - 55℃ to + 105℃; (8)Dimensions: 10 mm Dia. x 10 mm L x 10.3 mm H; (9)Product: Aluminum Electrolytic Capacitors; (10)Dissipation Factor DF: 0.3; (11)Leakage Current: 3 uAmps; (12)Load Life:1000 Hrs; (13)Packaging: Reel; (14)Ripple Current: 310 mAmps; (15)Series: WT.

Features

UWT0J152MNL1GS features: (1)Chip type operating over wide temperature range of to –55 to +105℃; (2)Designed for surface mounting on high density PC board; (3)Applicable to automatic mounting machine fed with carrier tape; (4)Compliant to the RoHS directive (2002/95/EC).

Diagrams

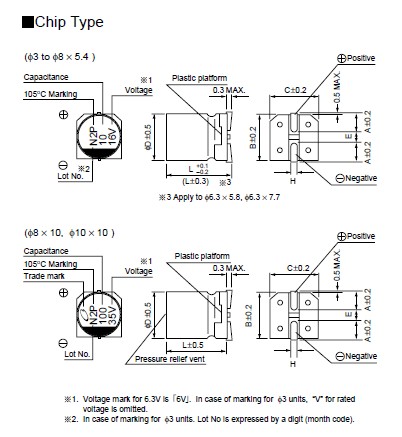

UWT0J152MNL1GS dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UWT0J152MNL1GS
UWT0J152MNL1GS
Nichicon
Aluminum Electrolytic Capacitors - SMD 6.3volts 1500uF 10x10 '20%
Data Sheet
0-1: $0.67
1-100: $0.40
100-500: $0.24
500-1000: $0.20
