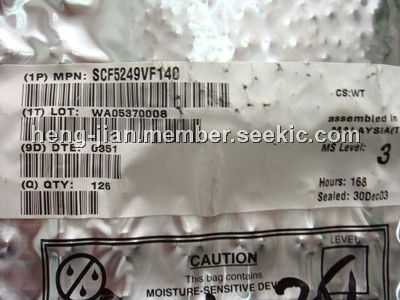

SCF5249VF140

BGA160X14, system controller, 4 DMA channels, 96-KByte SRAM, -0.5 to +2.5 V, +1.98 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: SCF5249VF140

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: BGA | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Daisy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-28

From Other Seller

Part Number:SCF5249VF140
US $1.00 - 10.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
AT45DB161B-TU

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

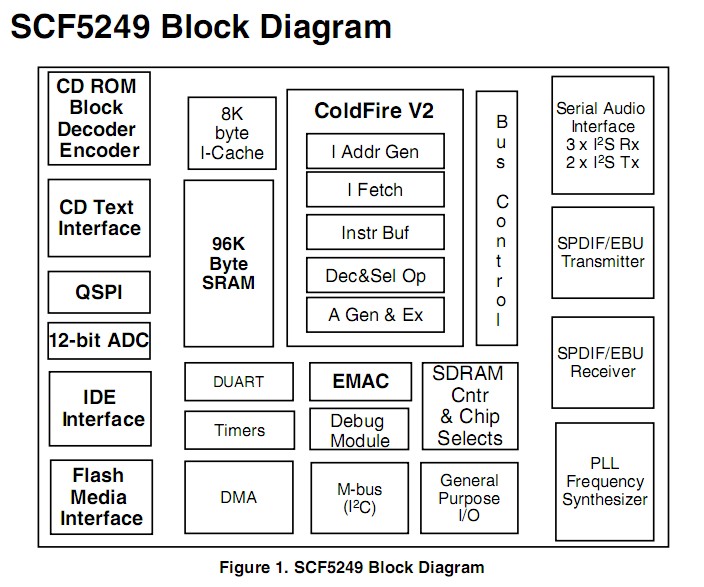

The SCF5249VF140 is designed as a system controller/decoder for MP3 music players, especially portable MP3 CD players. The 32-bit ColdFire core with Enhanced Multiply Accumulate (EMAC) unit provides optimum performance and code density for the combination of control code and signal processing required for MP3 decode, file management, and system control. Low power of the SCF5249VF140 features include a hardwired CD ROM decoder, advanced 0.18um CMOS process technology, 1.8V core power supply, and on-chip 96KByte SRAM. MP3 decode requires less than 20MHz CPU bandwidth and runs in on-chip SRAM with external access only for data input and output.

Parametrics

SCF5249VF140 absolute maximum ratings: (1)upply Core Voltage Vcc: -0.5 to +2.5 V; (2)Maximum Core Operating Voltage Vcc: +1.98 V; (3)Minimum Core Operating Voltage Vcc: +1.62 V; (4)Supply I/O Voltage Vcc: -0.5 to +4.6 V; (5)Maximum I/O Operating Voltage Vcc: +3.6 V; (6)Minimum I/O Operating Voltage Vcc: +3.0 V; (7)Input Voltage Vin: -0.5 to +6.0 V; (8)Storage Temperature Range Tstg: -65 to 150 ℃.

Features

SCF5249VF140 features: (1)DMA controller with 4 DMA channels; (2)Integrated Enhanced Multiply-accumulate Unit (EMAC); (3)8-KByte Direct Mapped Instruction Cache; (4)96-KByte SRAM (A 64K and a 32K bank); (5)Operates from external crystal oscillator; (6)Supports 16-bit wide SDRAM memories; (7)Serial Audio Interface which supports IIS and EIAJ audio protocols; (8)Digital audio transmitter and two receivers compliant with IEC958 audio protocol; (9)CD-ROM and CD-ROM XA block decoding and encoding function; (10)Two UARTS; (11)Queued Serial Peripheral Interface (QSPI) (Master Only); (12)Two timers; (13)IDE and SmartMedia interfaces; (14)Analog/Digital Converter; (15)Flash Memory Card Interface; (16)Two I2C modules; (17)System debug support; (18)General Purpose I/O pins shared with other functions.
