Product Summary

The ICS501MILFT LOCOTM is the most cost effective way to generate a high-quality, high-frequency clock output from a lower frequency crystal or clock input. The name LOCO stands for Low Cost Oscillator, as it is designed to replace crystal oscillators in most electronic systems. Using Phase-Locked Loop (PLL) techniques, the ICS501MILFT uses a standard fundamental mode, inexpensive crystal to produce output clocks up to 160 MHz. The ICS501MILFT also has an output enable pin which tri-states the clock output when the OE pin is taken low.

Parametrics

ICS501MILFT absolute maximum ratings: (1)Supply Voltage, VDD: 7 V; (2)All Inputs and Outputs: -0.5 V to VDD+0.5 V; (3)Ambient Operating Temperature: -40 to +85℃; (4)Storage Temperature: -65 to +150℃; (5)Soldering Temperature: 260℃.

Features

ICS501MILFT features: (1)Packaged as 8-pin SOIC or die; (2)Available in Pb (lead) free package; (3)ICS lowest cost PLL clock; (4)Zero ppm multiplication error; (5)Input crystal frequency of 5 - 27 MHz; (6)Input clock frequency of 2 - 50 MHz; (7)Output clock frequencies up to 160 MHz; (8)Extremely low jitter of 25 ps (one sigma); (9)Compatible with all popular CPUs; (10)Duty cycle of 45/55 up to 160 MHz; (11)Nine selectable frequencies; (12)Operating voltage of 3.3V or 5.5V; (13)Tri-state output for board level testing; (14)25mA drive capability at TTL levels; (15)Ideal for oscillator replacement; (16)Industrial temperature version available; (17)Advanced, low-power CMOS process.

Diagrams

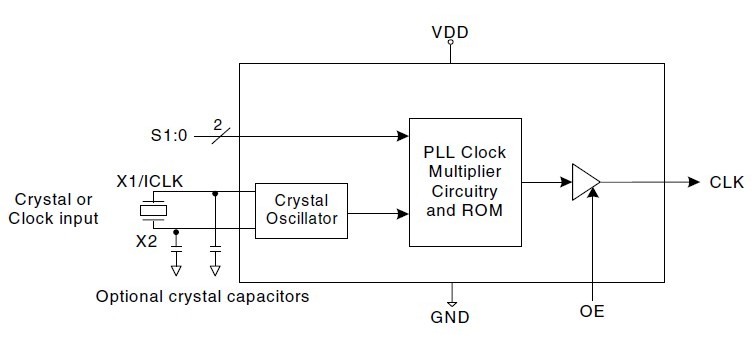

ICS501MILFT Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

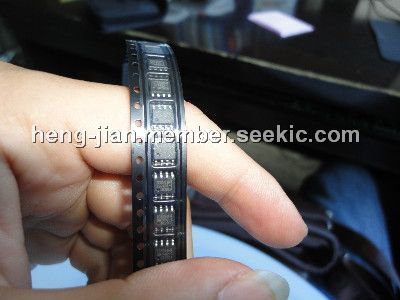

ICS501MILFT
ICS501MILFT

IC CLK MULTIPLIER PLL 8-SOIC
Data Sheet
0-1: $1.93
1-25: $1.49
25-100: $1.35
100-250: $1.21
250-500: $1.05
500-1000: $0.88
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ICS501
ICS501
Other

Data Sheet
Negotiable
ICS501A
ICS501A
Other

Data Sheet
Negotiable
ICS501AM
ICS501AM

IC PLL CLK MULTIPLIER 8-SOIC
Data Sheet
Negotiable
ICS501AMI
ICS501AMI

IC PLL CLK MULTIPLIER 8-SOIC
Data Sheet
Negotiable
ICS501AMILF
ICS501AMILF

IC PLL CLK MULTIPLIER 8-SOIC
Data Sheet
0-388: $1.18
ICS501AMILFT
ICS501AMILFT

IC PLL CLK MULTIPLIER 8-SOIC
Data Sheet
0-2500: $0.85
