Product Summary

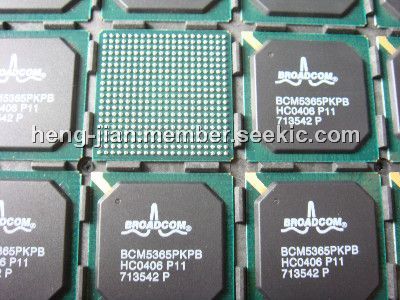

The BCM5365PKPB is the System-On-Chip which is the most highly integrated access secure switch processor. The BCM5365PKPB also features an on-chip, five-port 10/100 Ethernet switch with management features. This secured switch processor also offers extensive processor and interface integration featuring an integrated 200-MHz MIPS32 core, UART, flash and SDRAM/DDRAM interfaces. The BCM5365P also supports a PCI interface. The BCM5365PKPB (via dedicated cores) supports a wide range of cryptographic algorithms: AES (up to 256-bit CTR and CBC modes), DES, 3DES (CBC), HMAC-SHA1, HMAC-MD5, SHA1 and MD5. Both the devices support IPSec encryption and authentication in a single pass.
Features
BCM5365PKPB features: (1)The most highly integrated access security processors ; (2)5-port 10/100 Ethernet switch with integrated PHY (TX/FX); (3)Complete on-chip IPSec processing; (4)General purpose 200-MHz MIPS32 Processor; (5)Supports Linux and VxWorks operating systems; (6)BCM5365P supports PCI 2.2, 32-bit/33-MHz host/slave interface; (7)Extensive interface flexibility; (8)JTAG/EJTAG support; (9)400-pin PBGA package; (10)Low power, 1.8V core, 3.3V I/O operation; (11)Linux Open Source application software support.

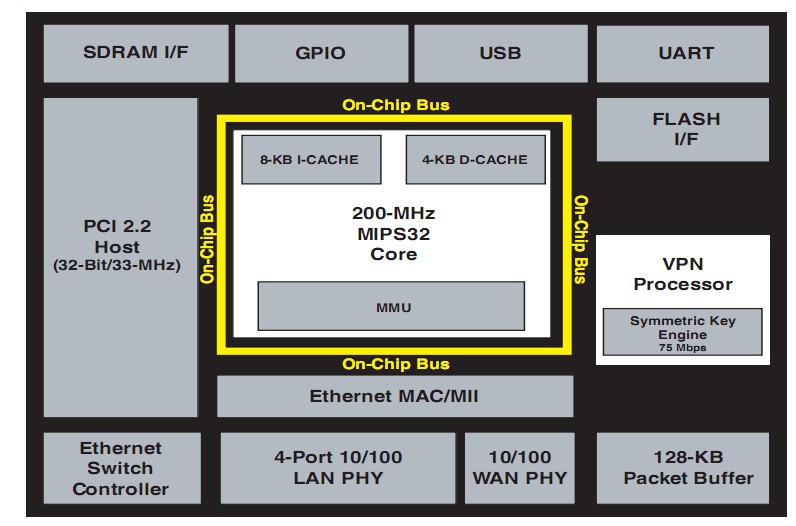

Diagrams
 |
