Product Summary
The S-AU68M is UHF band FM power amplifier module.
Parametrics
S-AU68M absolute maximum ratings: (1)DC Supply Voltage: 17 V; (2)DC Supply Voltage: 6 V; (3)nput Power: 50 mW; (4)Output Power: 12 W; (5)Total Current: 3 A; (6)Operating Case Temperature Range: - 30 to 100℃; (7)Storage Temperature Range: -40 to 110℃.
Features
S-AU68M specifications:(1)requency Range frange: 450 to 470 MHz; (2)Output Power (1), VDD=9.6V: 7 W; (3)Output Power (2), VDD=6.0V: 2.7W; (4)Total Efficiency: 40 %; (5)Input VSWR: 2.5; (6)Harmonics: 25 dB.

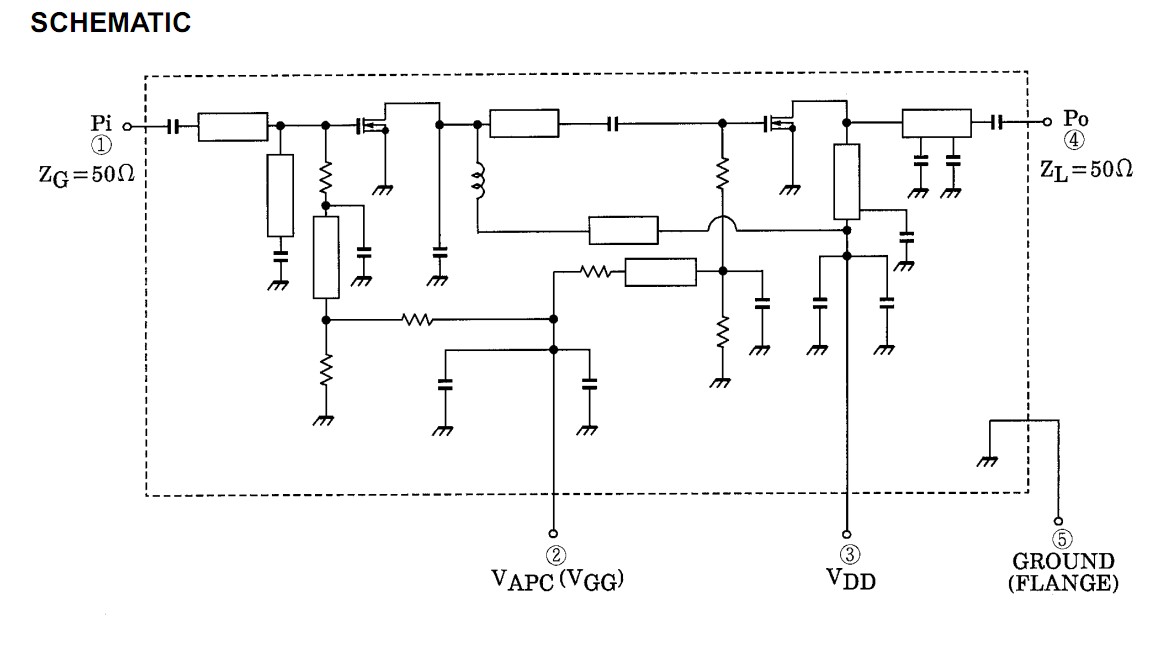

Diagrams
 |
