Product Summary

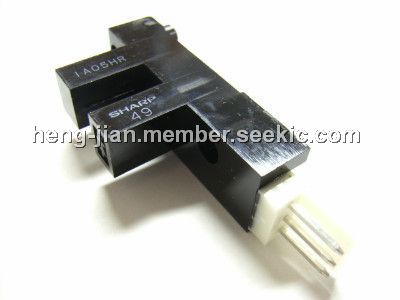

The GP1A05HR is an OPIC Photointerrupter with Connector.
Parametrics
GP1A05HR absolute maximum ratings: (1)Supply voltage, GP1A05 VCC: - 0.5 to + 10V; (2)Output voltage VO: - 0.5 to + 28 V; (3)Low level output current IOL: 50 mA; (4)Operating temperature T opr: - 20 to + 75 ℃; (5)Storage temperature, T stg: - 40 to + 85℃.
Features
GP1A05HR features: (1)Uses 3-pin connector terminal; (2)High sensing accuracy ( Slit width : 0.5mm ); (3)Wide gap between light emitter and detector (5mm ).

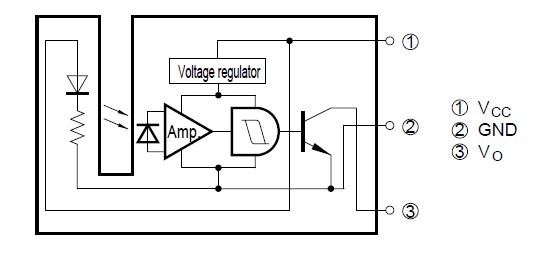

Diagrams
 |
